Dudes Beetle Technical Diagrams
Wiring Diagrams
- Complete Wiring Diagram - Full wiring for Dudes Beetle.
- MSD Wiring Diagram - Full wiring diagram for Dudes Beetle MSD system.
- Tail Light and Semaphore Flasher Unit Wiring - Wiring diagram for flashing tail lights and semaphores.
- Oil Cooler and Fan Diagram - Full wiring for the fan and thermostat for the oil cooler.

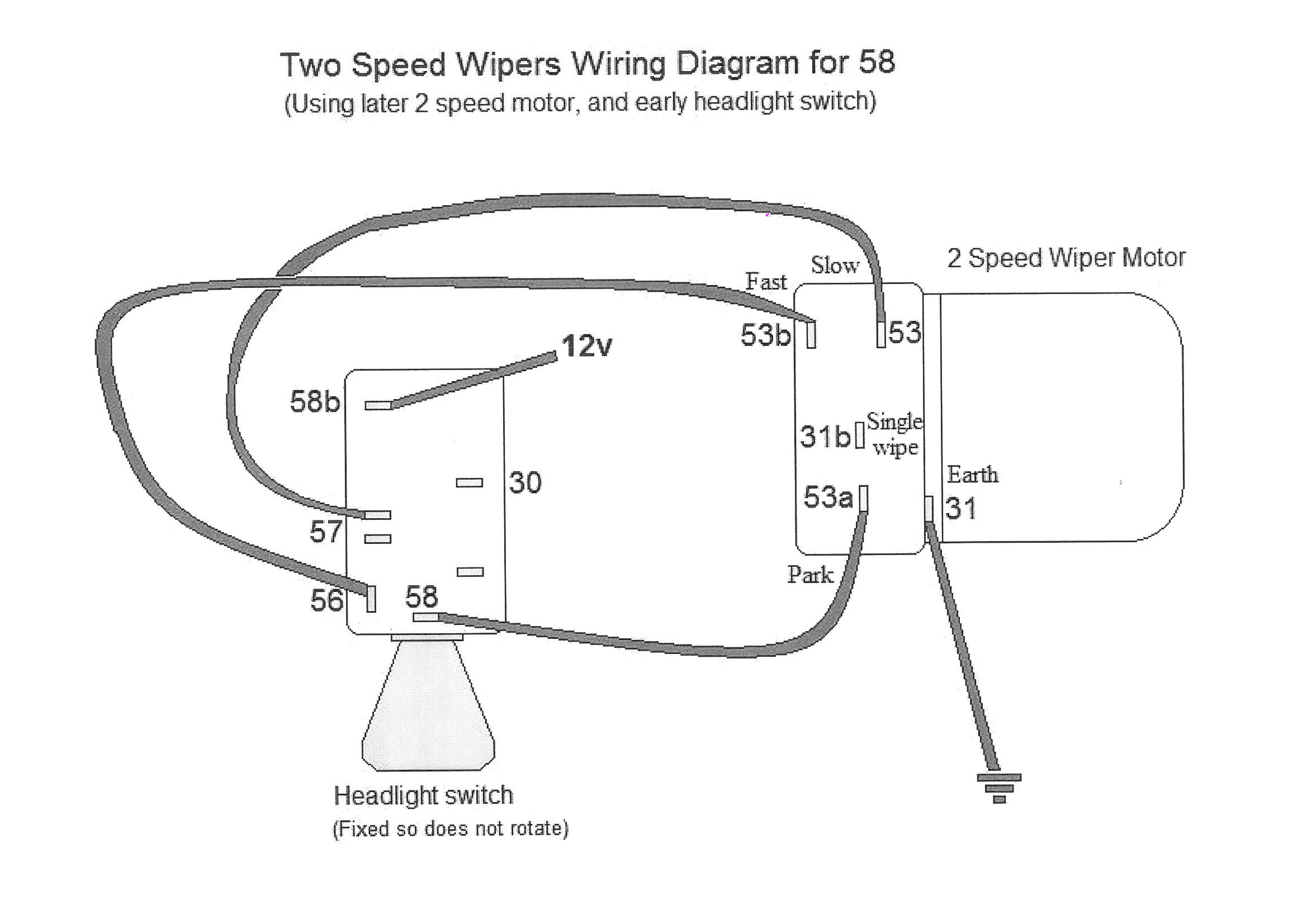

- Two Speed Wipers Diagram - Wiring for two speed Wipers.

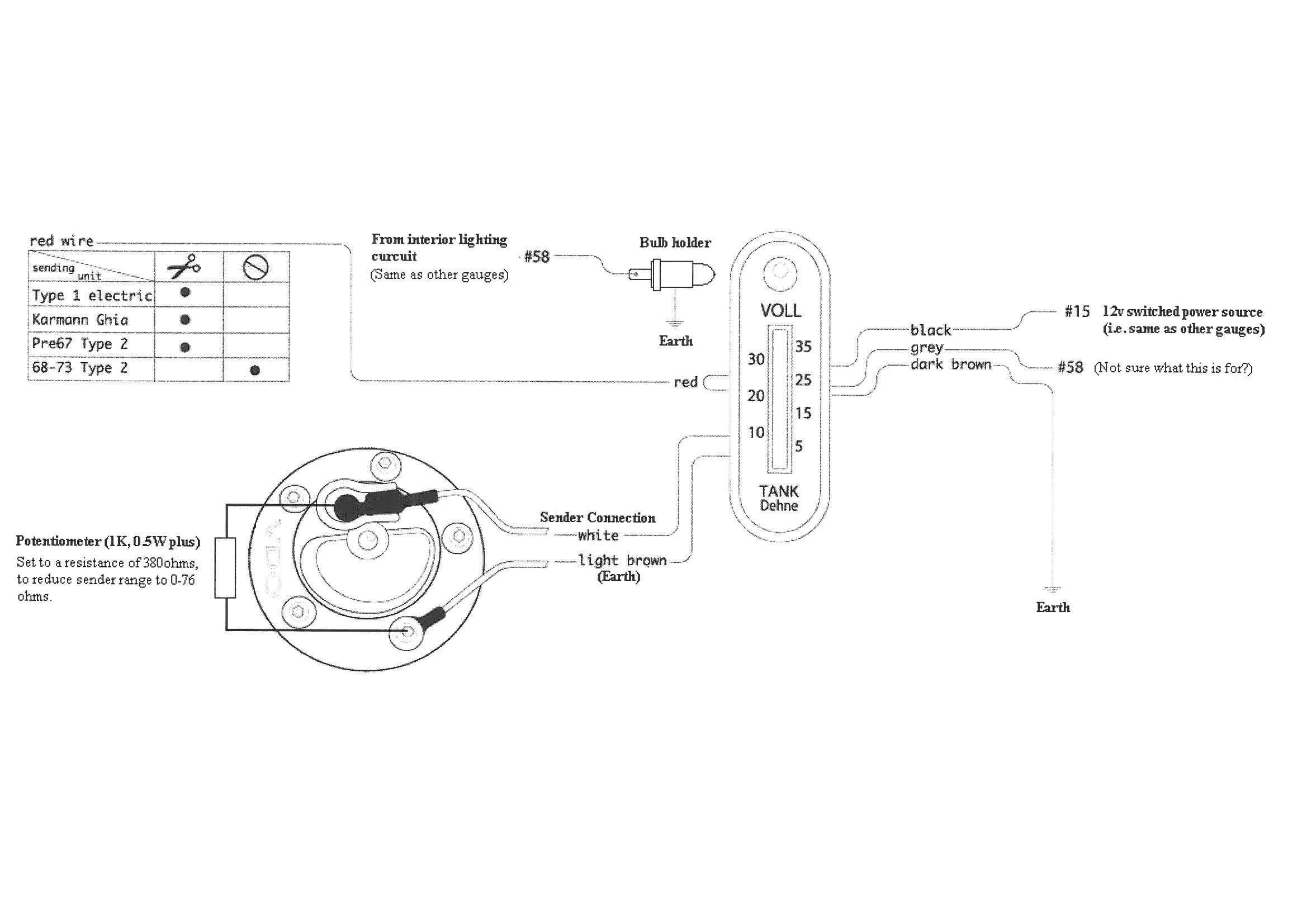

- Dehne Fuel Gauage Wiring Diagram - Dehne Fuel Gauage Wiring Diagram.

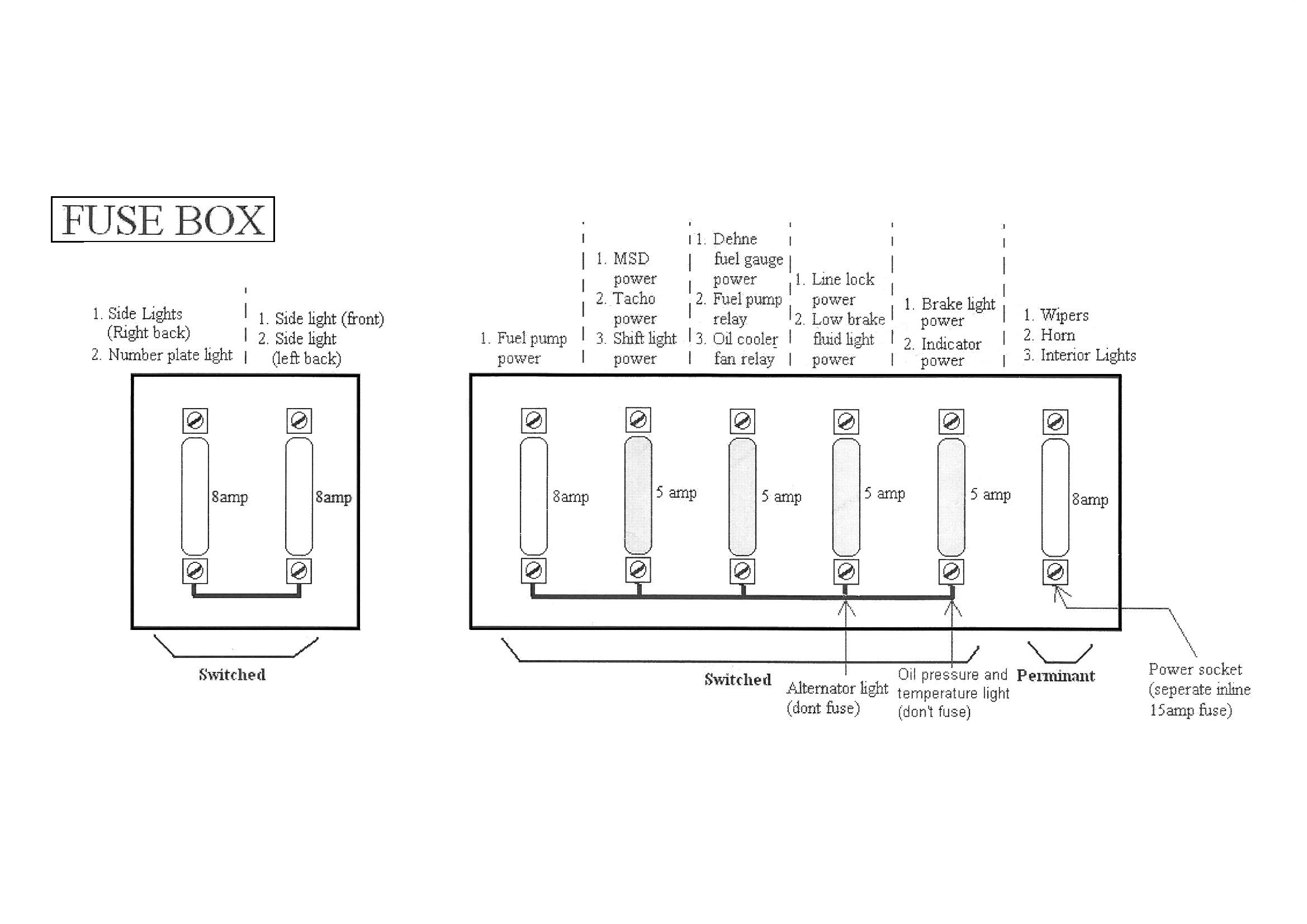

- Fuse Box Connections and Fuses - Fuse box connections and fuses.
Fuel System

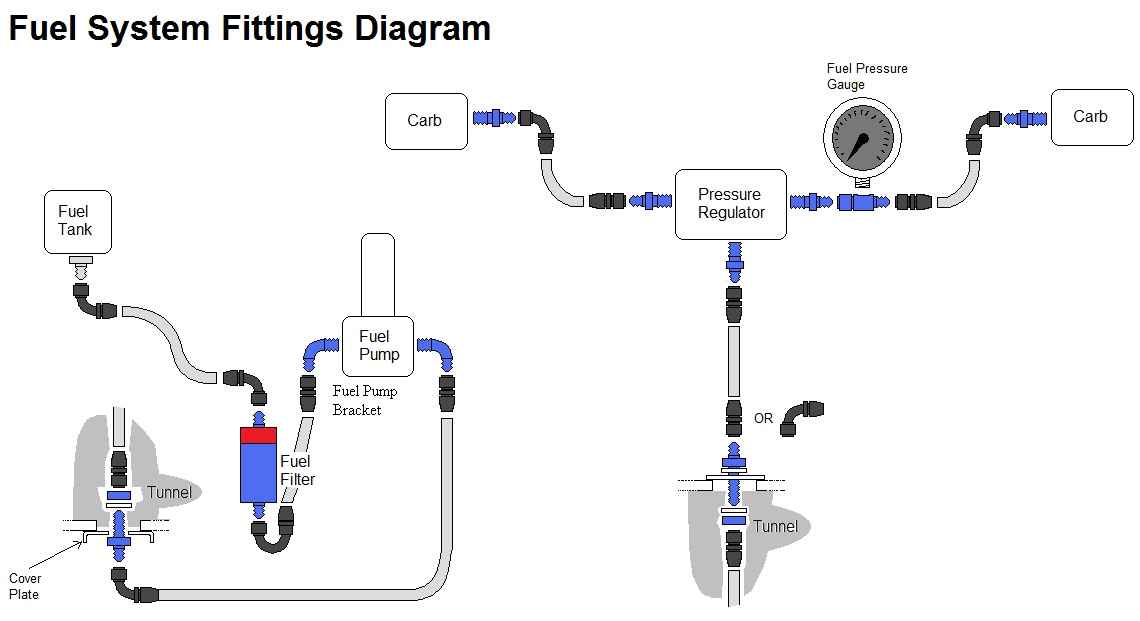

- Fuel System Diagram - Full Fuel System Diagram for Dudes Beetle.

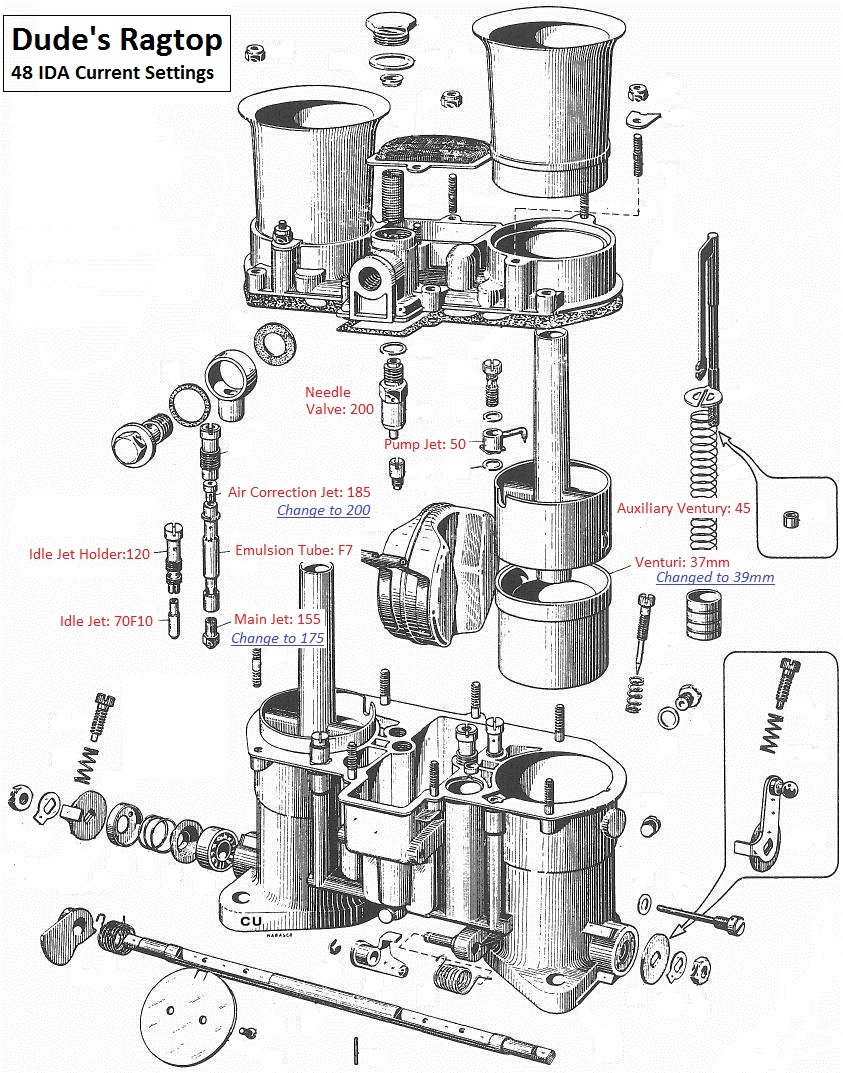

- 48IDA Settings - Settings for Dudes Beetle 48IDA's.
Brakes
- Brake Lines Diagram - Full brake lines diagram for Dudes Beetle.
Gearbox
- Gearbox Specs - Gearbox specs and calculated MPH by RPM and gear.
Colour Scheme
- L335 Capri Colour Codes - Details of interior options and color codes for L335 Capri Cars.
Tyre Choice
- Front Tyres - 155 SR 15 Firestone F560. (old, need new ones)
- Rear Tyres - 215 65 15 M&H DOT treaded slicks. (new)
- Spare Tyre - 145 SR 15 Firestone F560. (new)
